Non-inductive design
Resistance ranged from 200Ω to 10GΩ
Resistance tolerance: ±1% to ±10%
Power up to 50W
TCR as low as ±25ppm/℃
Customization available
High voltage generator； X-rays Application； Precision high voltage power resource；Precision divider electron microscopes；High resolution CRT displays
Rated Voltage: 4.8KV to 45KV (DC)
Resistance Range: 200Ω to 10GΩ
Tolerance: ±1% ±5% ±10%
TCR: ±25ppm/℃ ±50ppm/℃ ±100ppm/℃
Rated Power: 5W to 50W
Stability: ±1% to ±5% (1000hours, 125℃)
Stability: ±0.25% ±0.5% (1000hours, 125℃)
Overload: ΔR≤0.5% (10 seconds @150% rated power)
Thermal Shock: ΔR≤0.25%
Moisture Resistance: ΔR≤0.4%
Climate Category: 55/125/56%

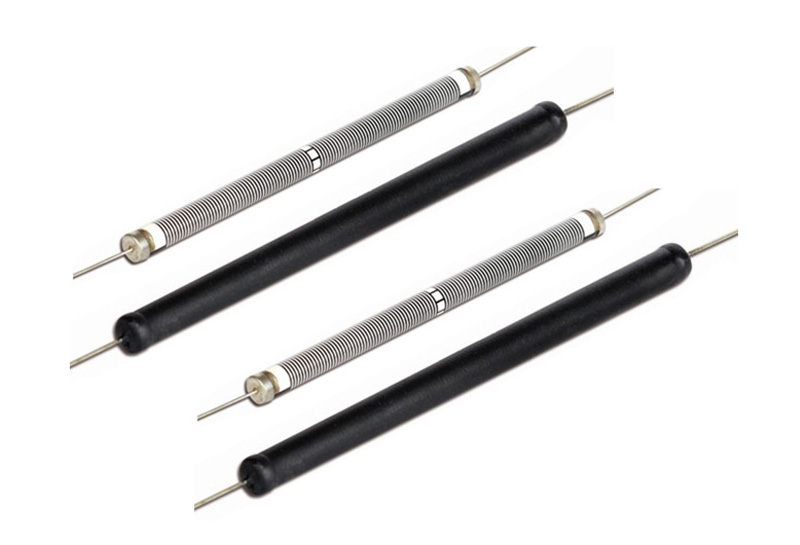

Construction: Ceramic core
Case: High temperature silicone conformal encapsulation
Lead Material: Tinned copper solid wire, AWG as specified in selection table
Lead Strength: Capable of withstanding a five pound pull force axially

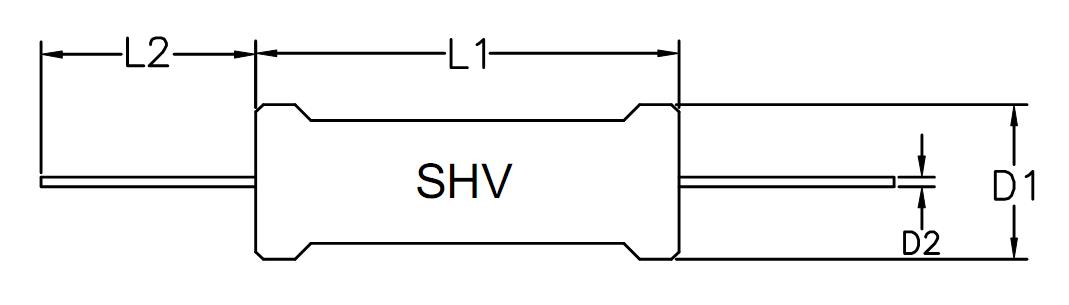

| RC Series | 20 | 27 | 33 | 40 | 52 | 78 | 103 | 124 | 154 | |
| L1 (mm) | 20.2 | 26.9 | 33 | 39.5 | 52.1 | 77.7 | 102.9 | 123.7 | 153.7 | |
| L2 (mm) | 28±3 38±3 *Default value, customization available | |||||||||
| D1 (mm) | 8.2 *Default value, customization available | |||||||||
| D2 (AWG) | AWG20/18 | |||||||||
| Rated Power (W) | 5 | 7 | 9 | 11 | 15 | 20 | 25 | 30 | 50 | |
| Rated Voltage (KV) | 4.8 | 6.4 | 8 | 12.8 | 16 | 24 | 32 | 40 | 45 | |
| Resistance Range (Ω) | Max | 1G | 1G | 1.5G | 1.5G | 2.5G | 4G | 6G | 8G | 10G |
| Min | 200 | 250 | 300 | 400 | 500 | 900 | 1K2 | 1K5 | 2K | |
| Tolerance (± %) | 1/2/5/10 | |||||||||
| TCR (± ppm/℃ ) | 25/50/100 | |||||||||
| Stability | ±0.25% ±0.5% (1000hours, 125℃) | |||||||||
